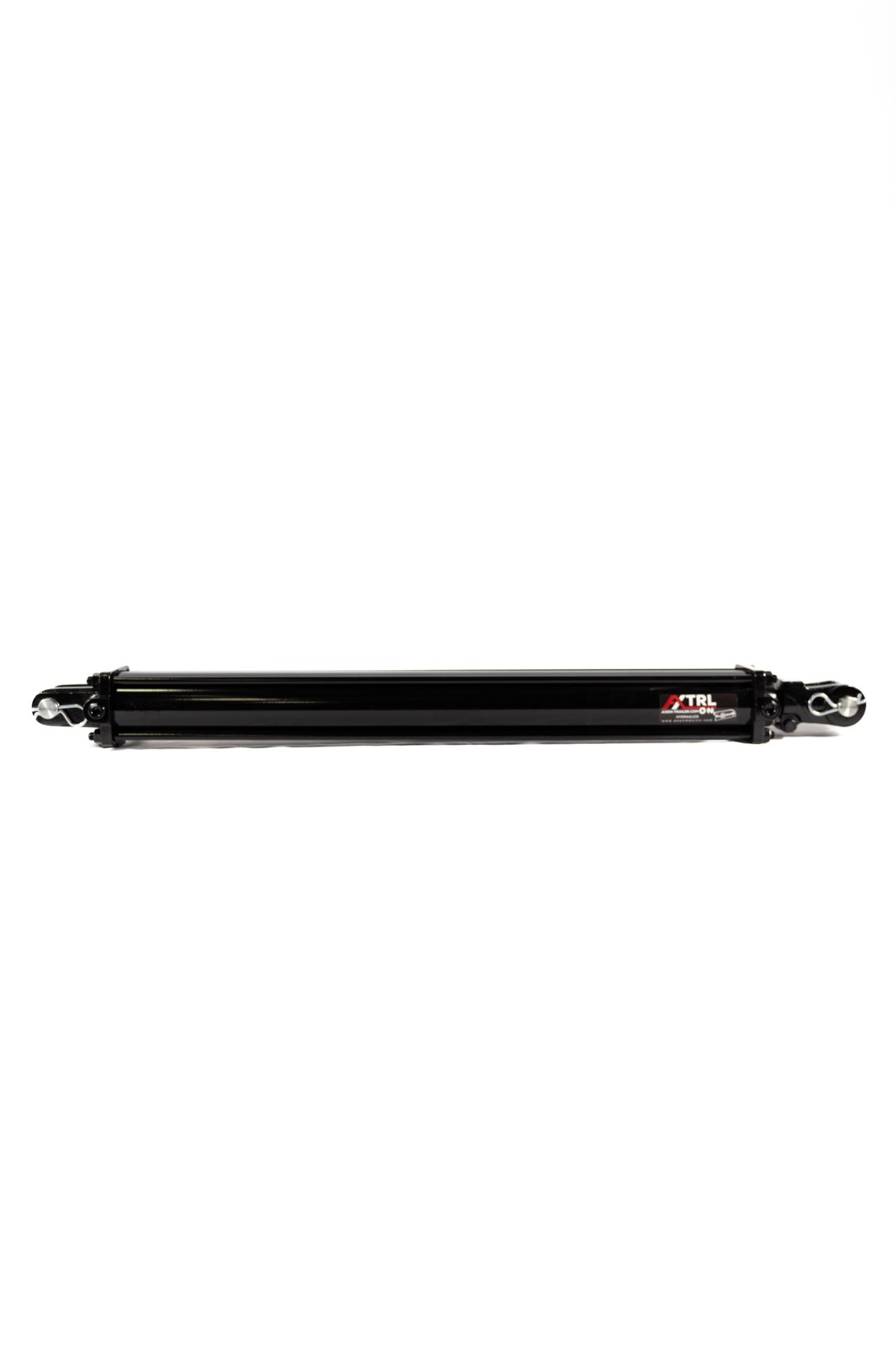

BORE 3″ ROD 1 1/2″ STROKE 30″ 2,500 PSI

BORE 3″ ROD 1 1/2″ STROKE 30″ 2,500 PSI

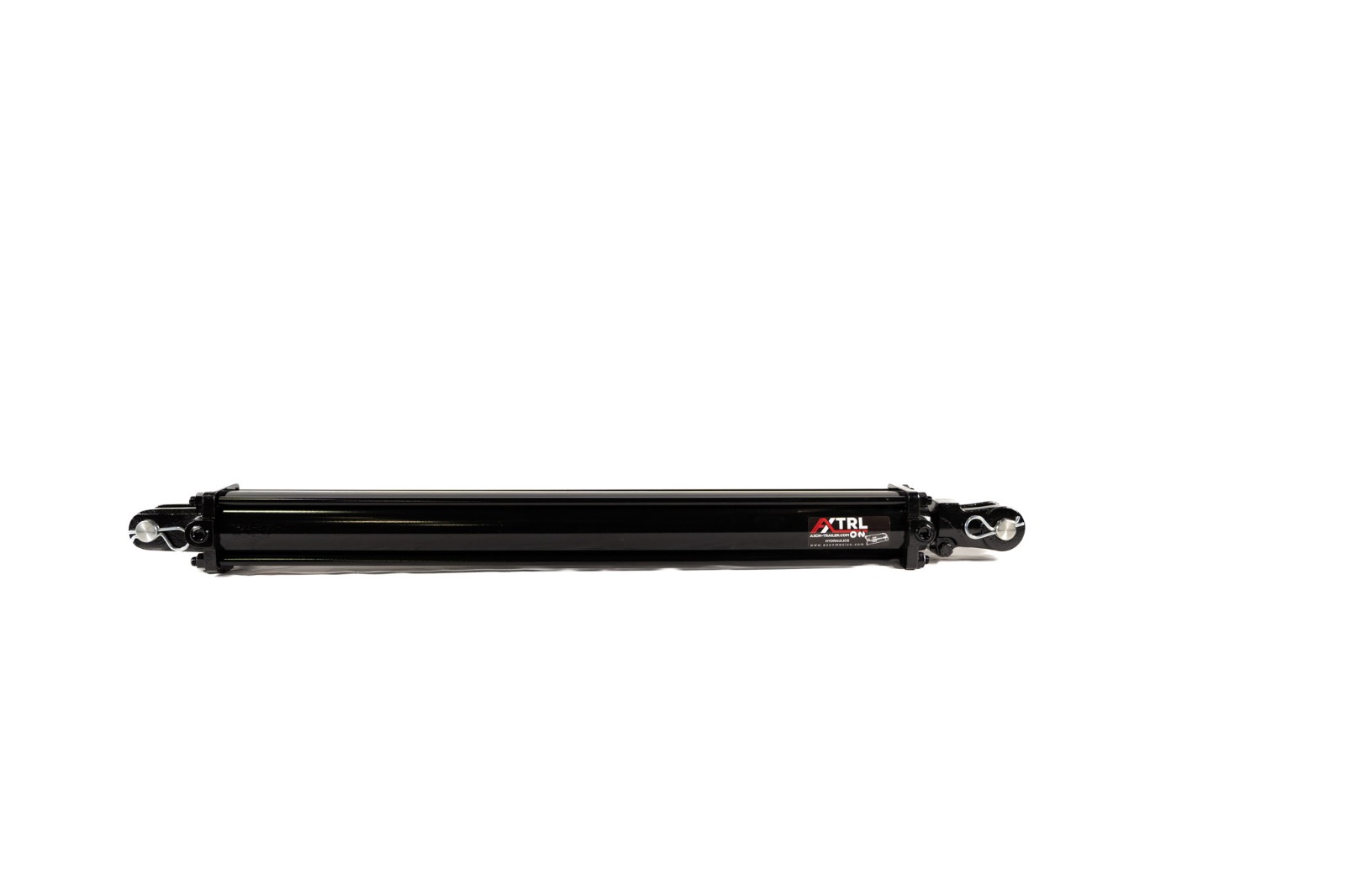

BORE 3″ ROD 1 1/2″ STROKE 30″ 2,500 PSI - Image 2

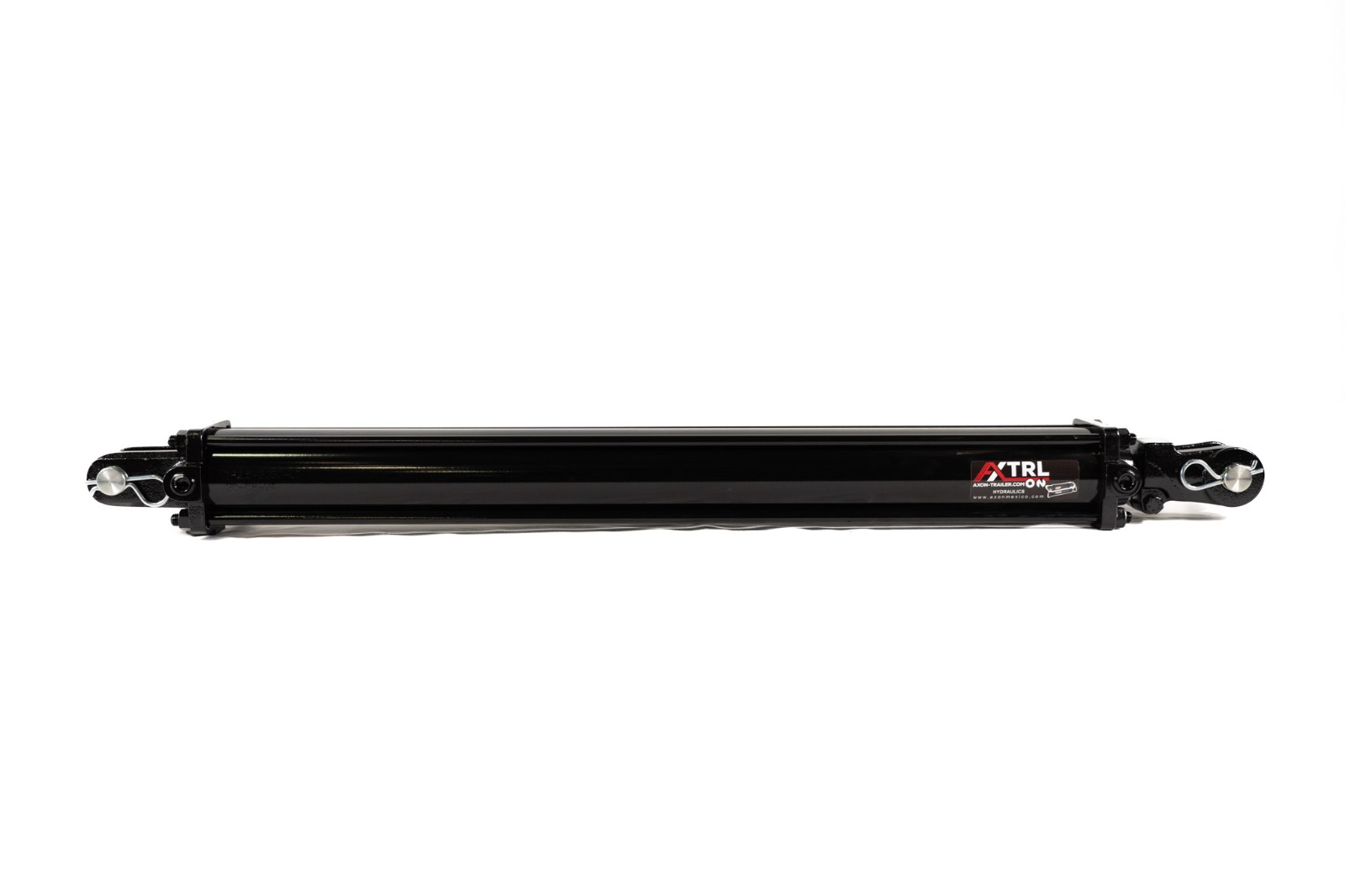

BORE 3″ ROD 1 1/2″ STROKE 30″ 2,500 PSI - Image 3
Robust Material: Polished black steel housing.
Superior Durability: High-strength chrome-plated steel rod.
Double-acting operation for increased efficiency.
Pressure Capacity: Up to 2,500 PSI.
Weight: 25.40 kg.

Specifications:

  • Bore Diameter: 3 in
  • Rod Diameter: 1 1/2 in
  • Stroke Length: 30 in
  • Pin Diameter: 1 in
  • Oil Port Diameter: 1/2 in NPT

Dimensions (pin to pin):

  • Closed Length: 40 1/4 in
  • Extended Length: 70 1/4 in
