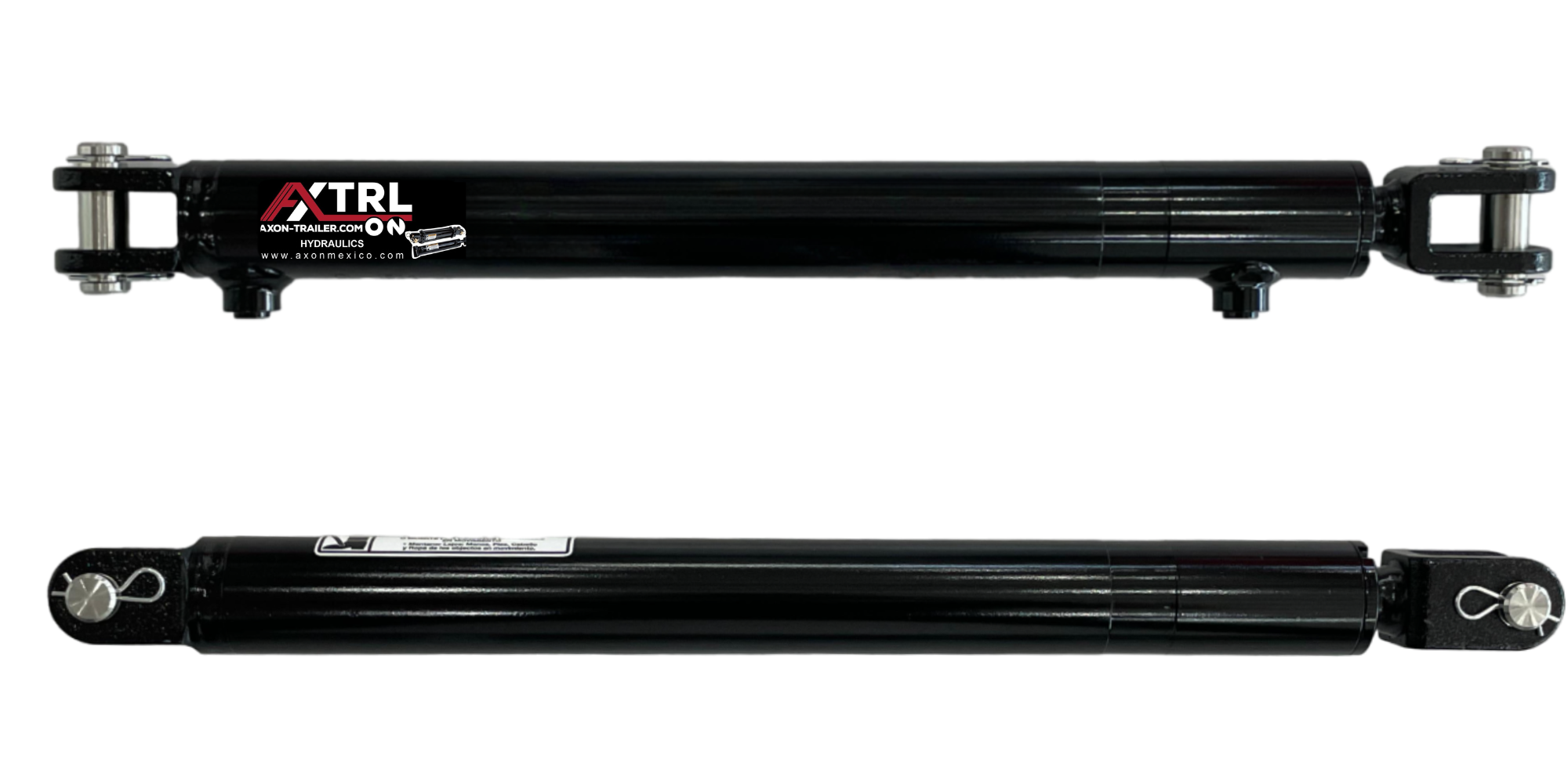

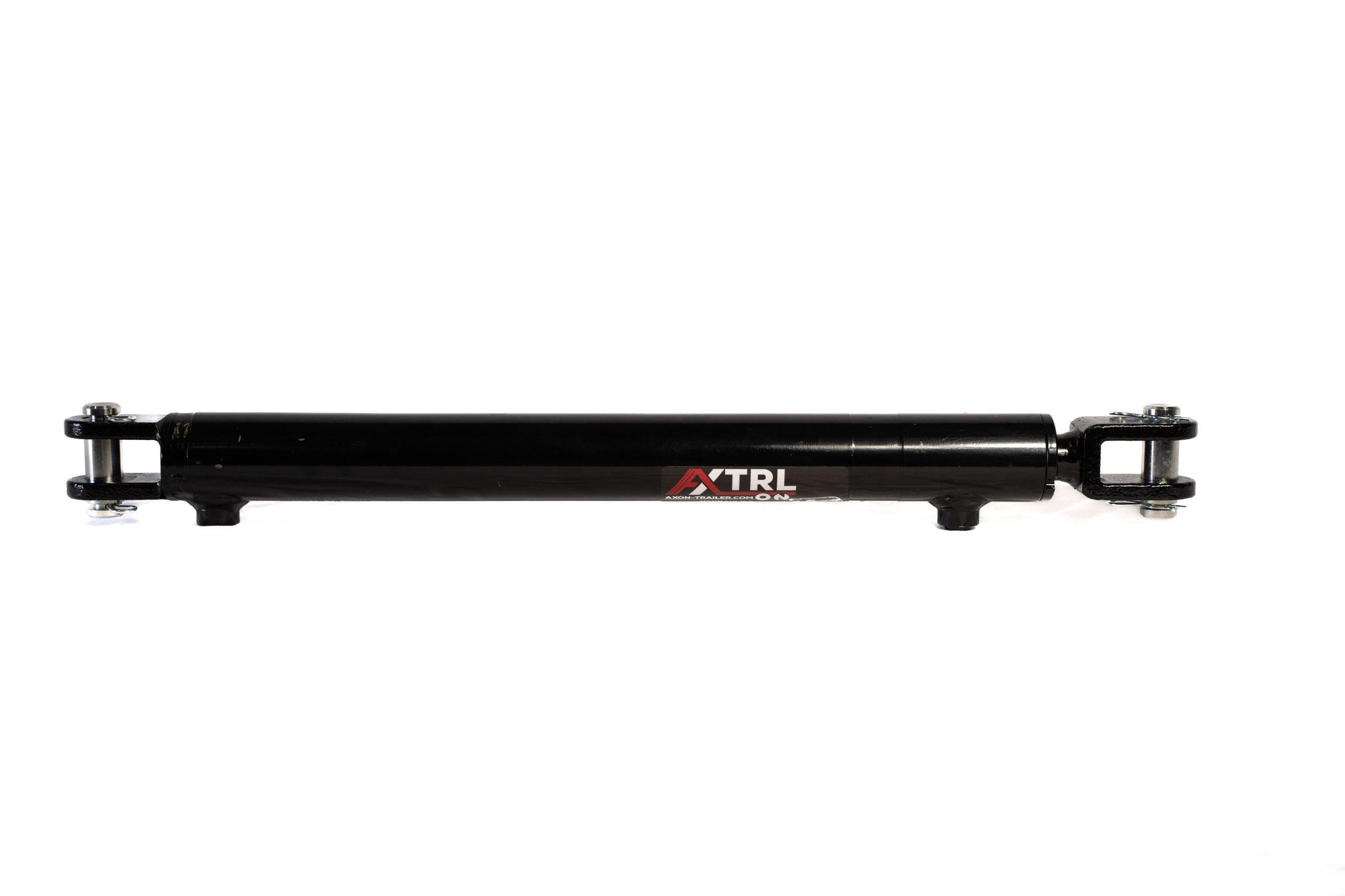

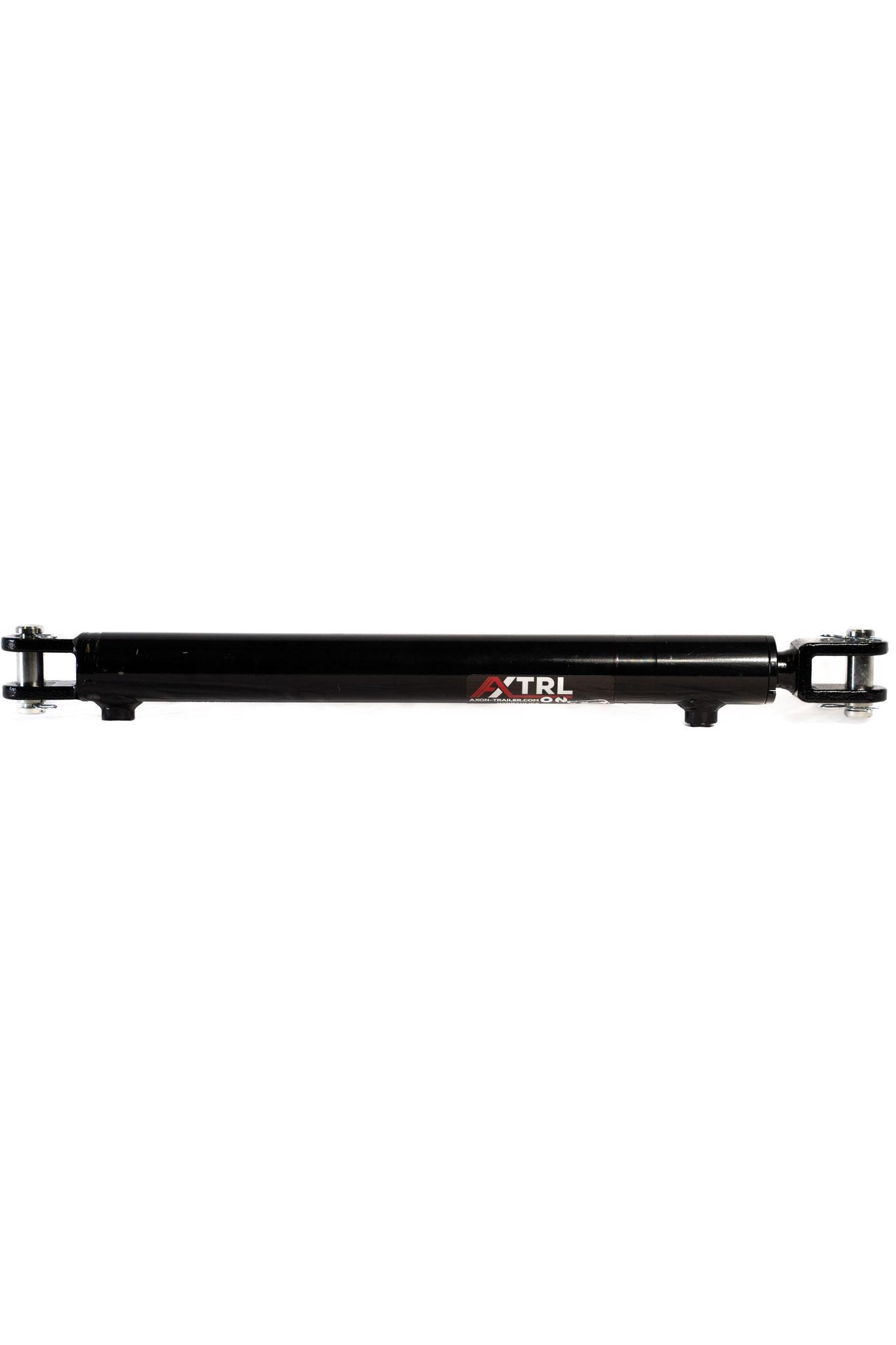

BORE 1 1/2″ ROD 1″ STROKE 14″ 3,000 PSI

Superior Durability: High-strength chrome-plated steel rod.
Double-acting operation for increased efficiency.
Pressure Capacity: Up to 3,000 PSI.
Weight: 6.40 kg.

Specifications:

• Bore Diameter: 1 1/2 in
• Rod Diameter: 1 in
• Stroke Length: 14 in
• Pin Diameter: 3/4 in
• Oil Port Diameter: SAE 4

Dimensions (pin to pin):

• Closed Length: 22 1/4 in
• Extended Length: 36 1/4 in
