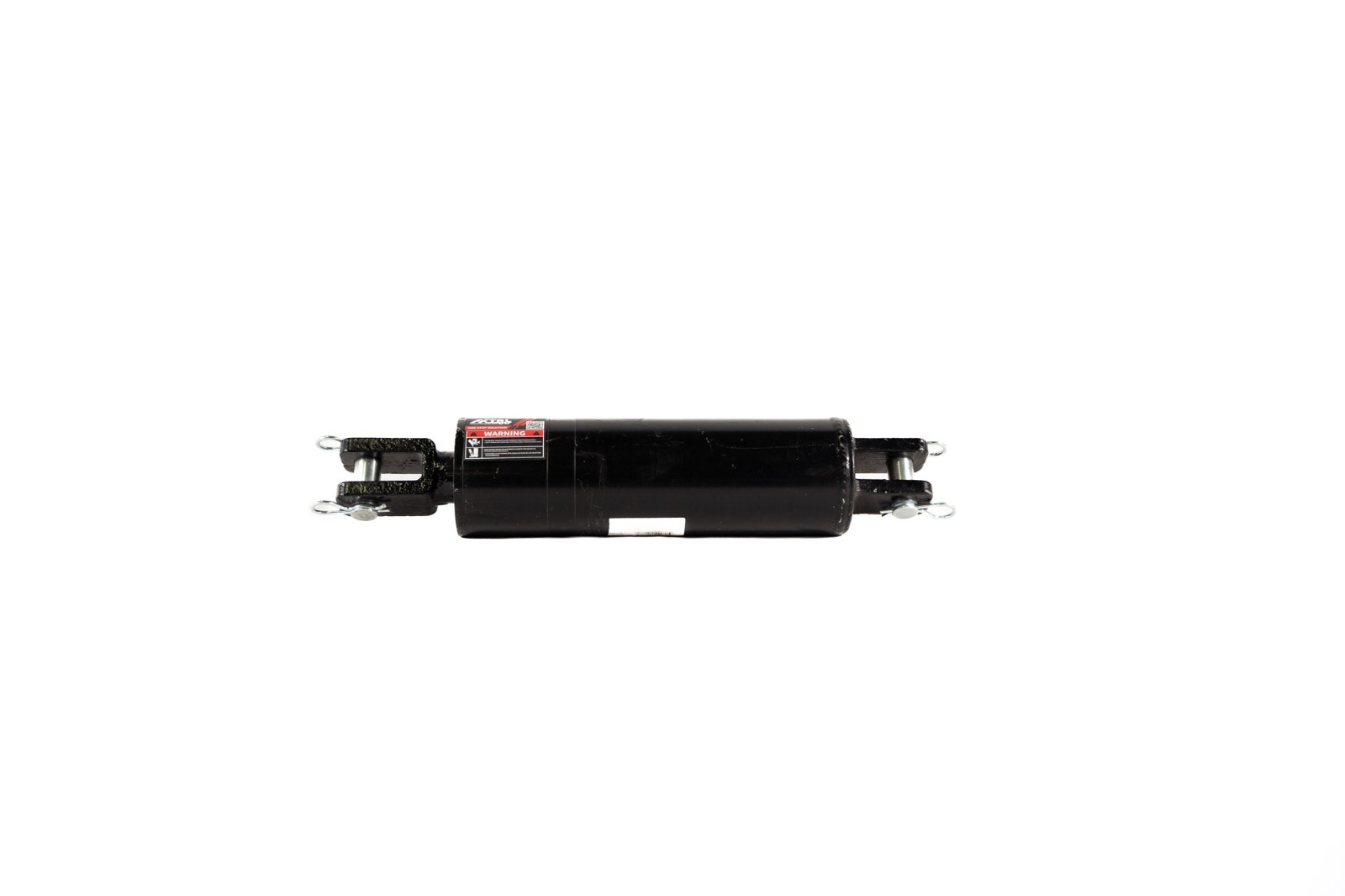

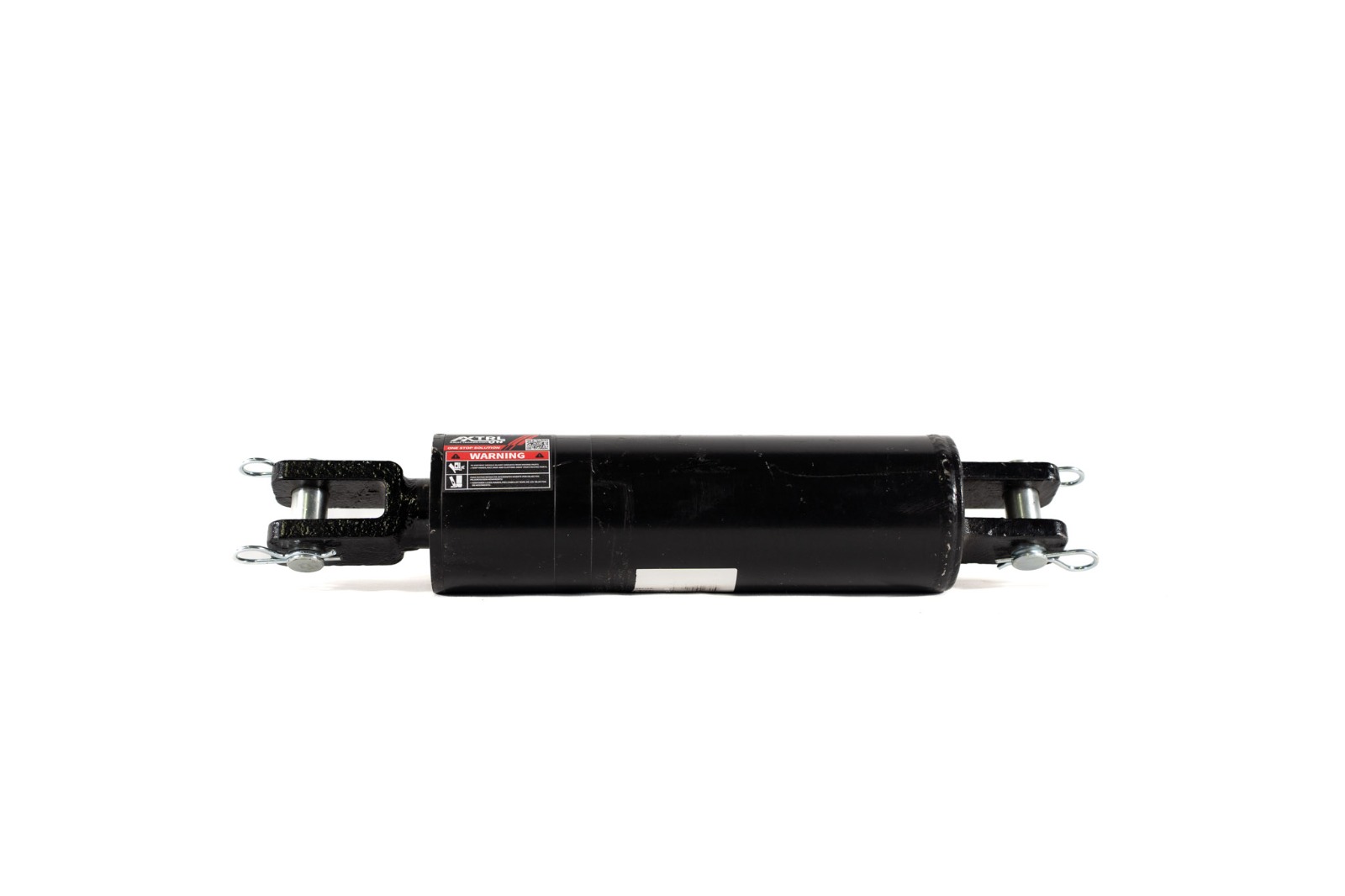

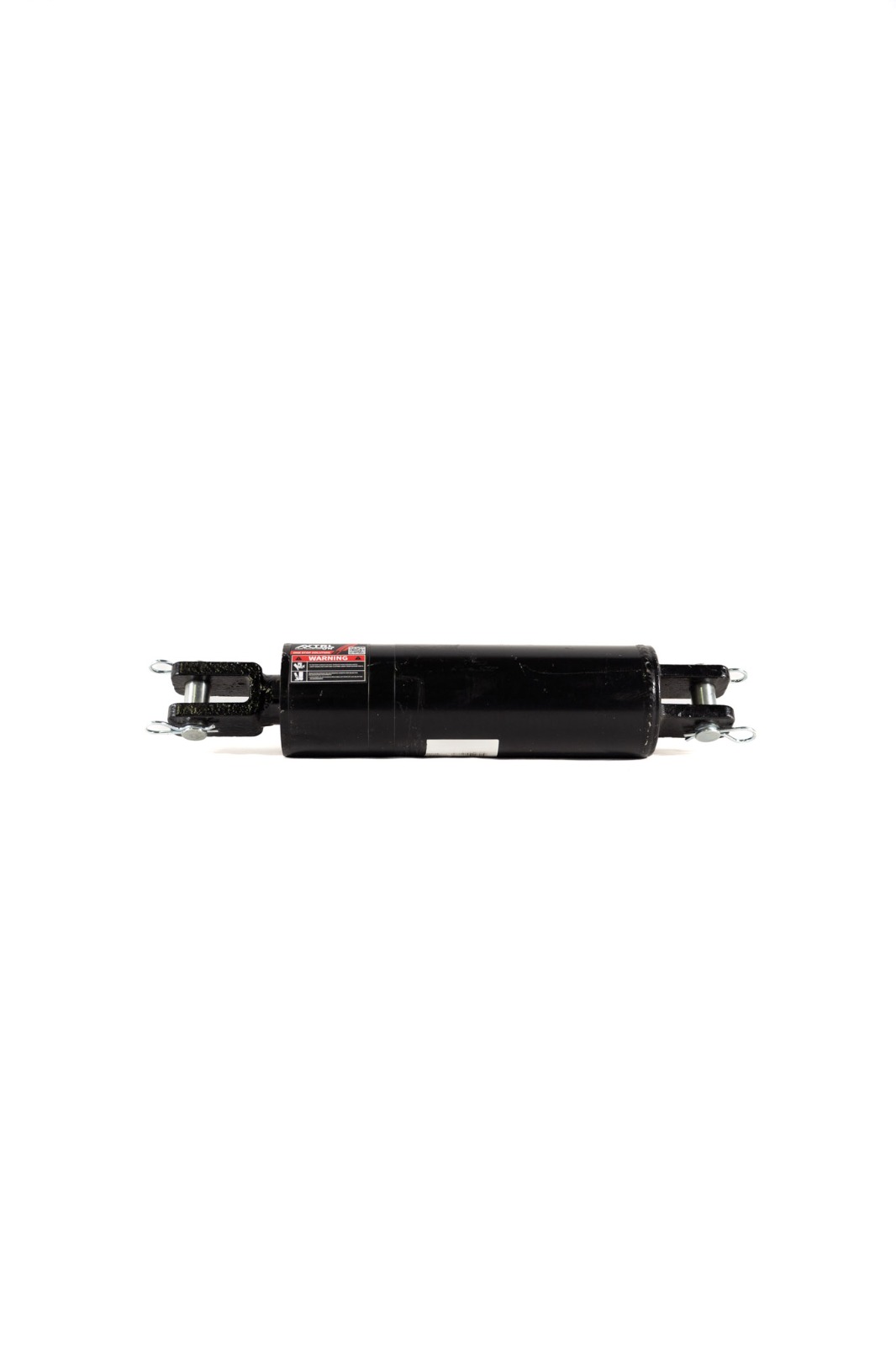

BORE 4” ROD 2” STROKE 10” 3,000 PSI

BORE 4” ROD 2” STROKE 10” 3,000 PSI
BORE 4” ROD 2” STROKE 10” 3,000 PSI - Image 2
BORE 4” ROD 2” STROKE 10” 3,000 PSI - Image 3
BORE 4” ROD 2” STROKE 10” 3,000 PSI - Image 4
BORE 4” ROD 2” STROKE 10” 3,000 PSI - Image 5
BORE 4” ROD 2” STROKE 10” 3,000 PSI - Image 6
Robust Material: Polished black steel housing.
Superior Durability: High-strength chrome-plated steel rod.
Double-acting operation for increased efficiency.
Pressure Capacity: Up to 3,000 PSI.
Weight: 19.80 kg.

Specifications:

  • Bore Diameter: 4 in
  • Rod Diameter: 2 in
  • Stroke Length: 10 in
  • Pin Diameter: 1 in
  • Oil Port Diameter: SAE 8

Dimensions (pin to pin):

  • Closed Length: 20 1/4 in
  • Extended Length: 30 1/4 in
