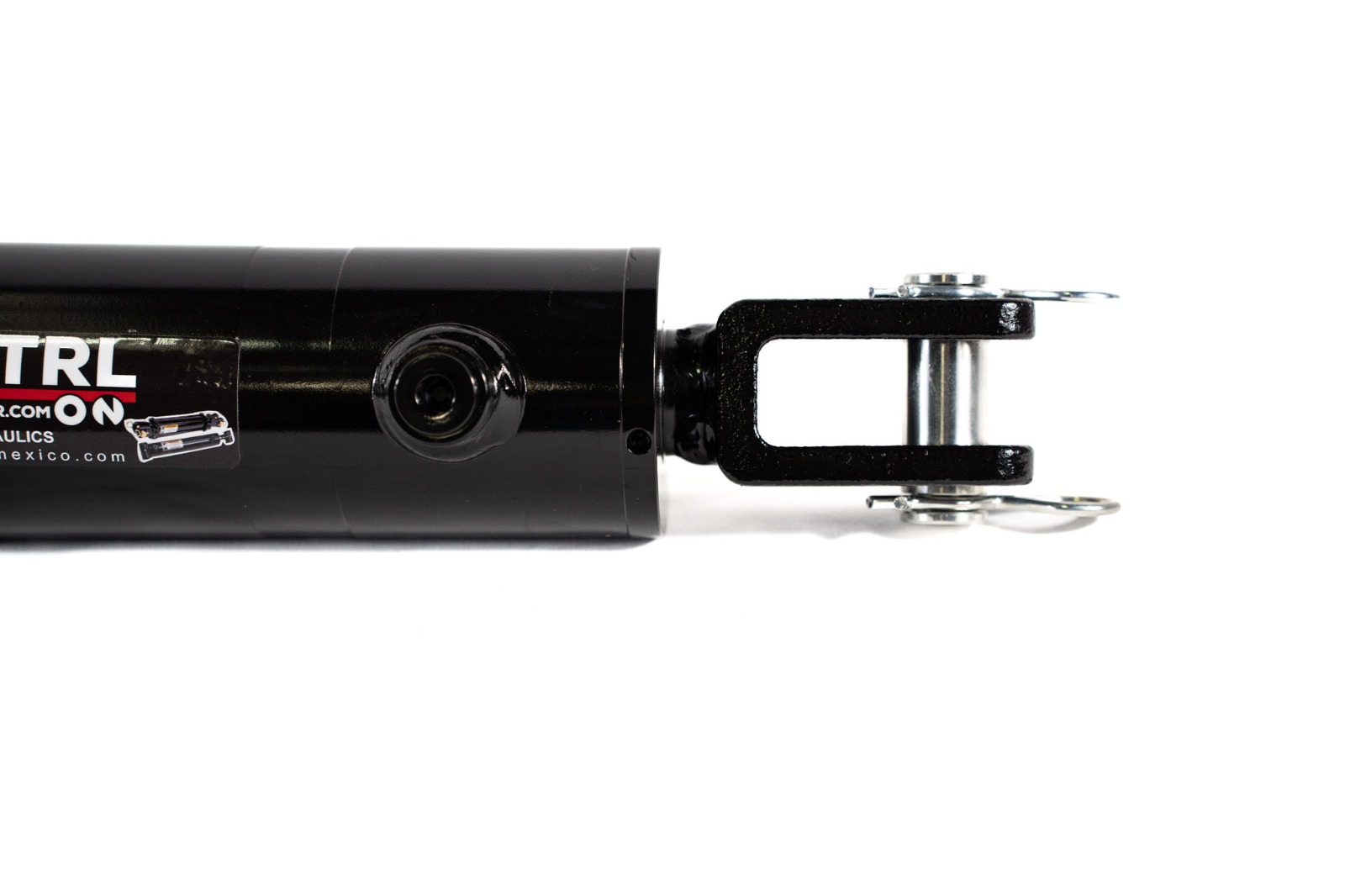

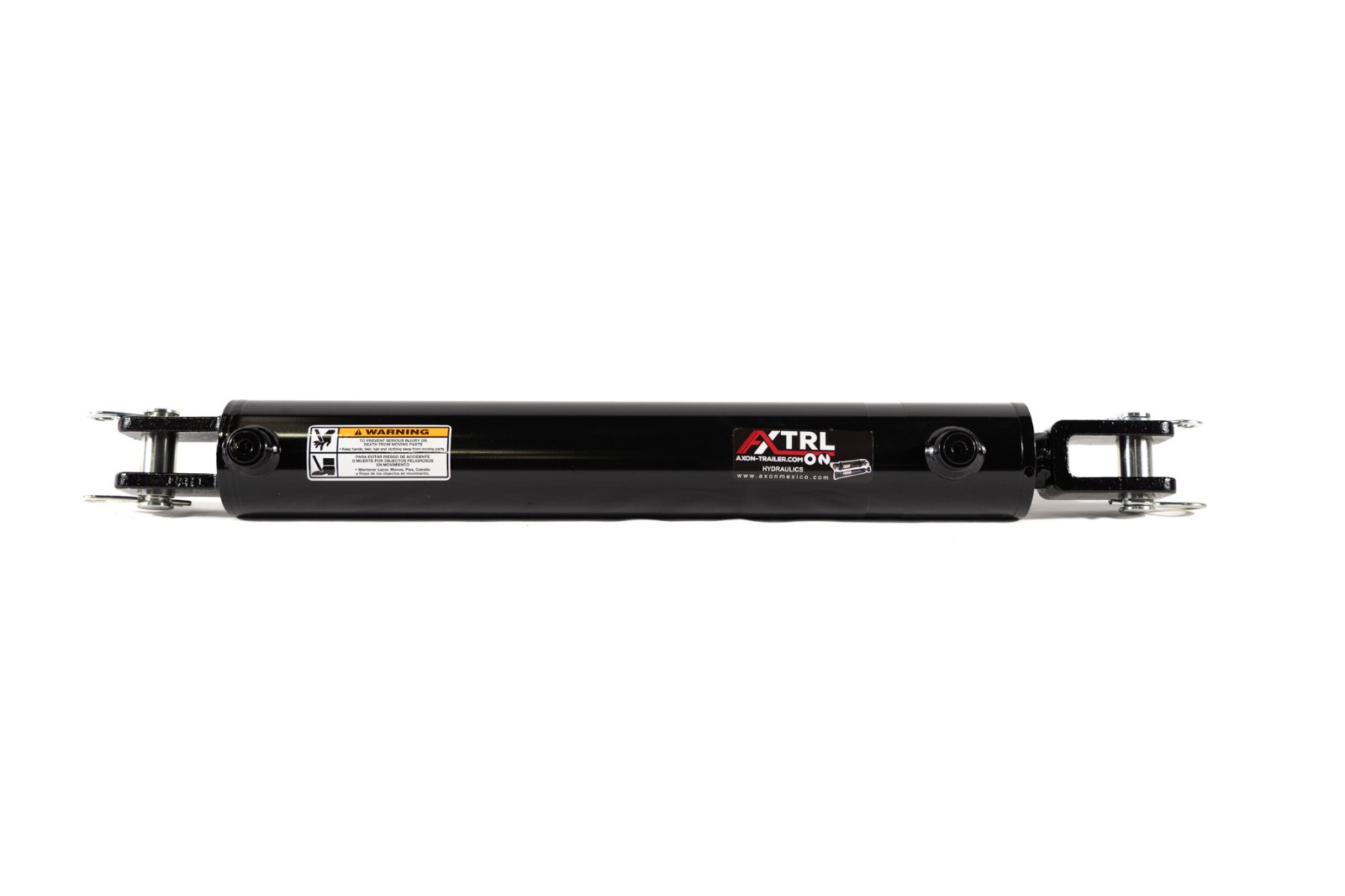

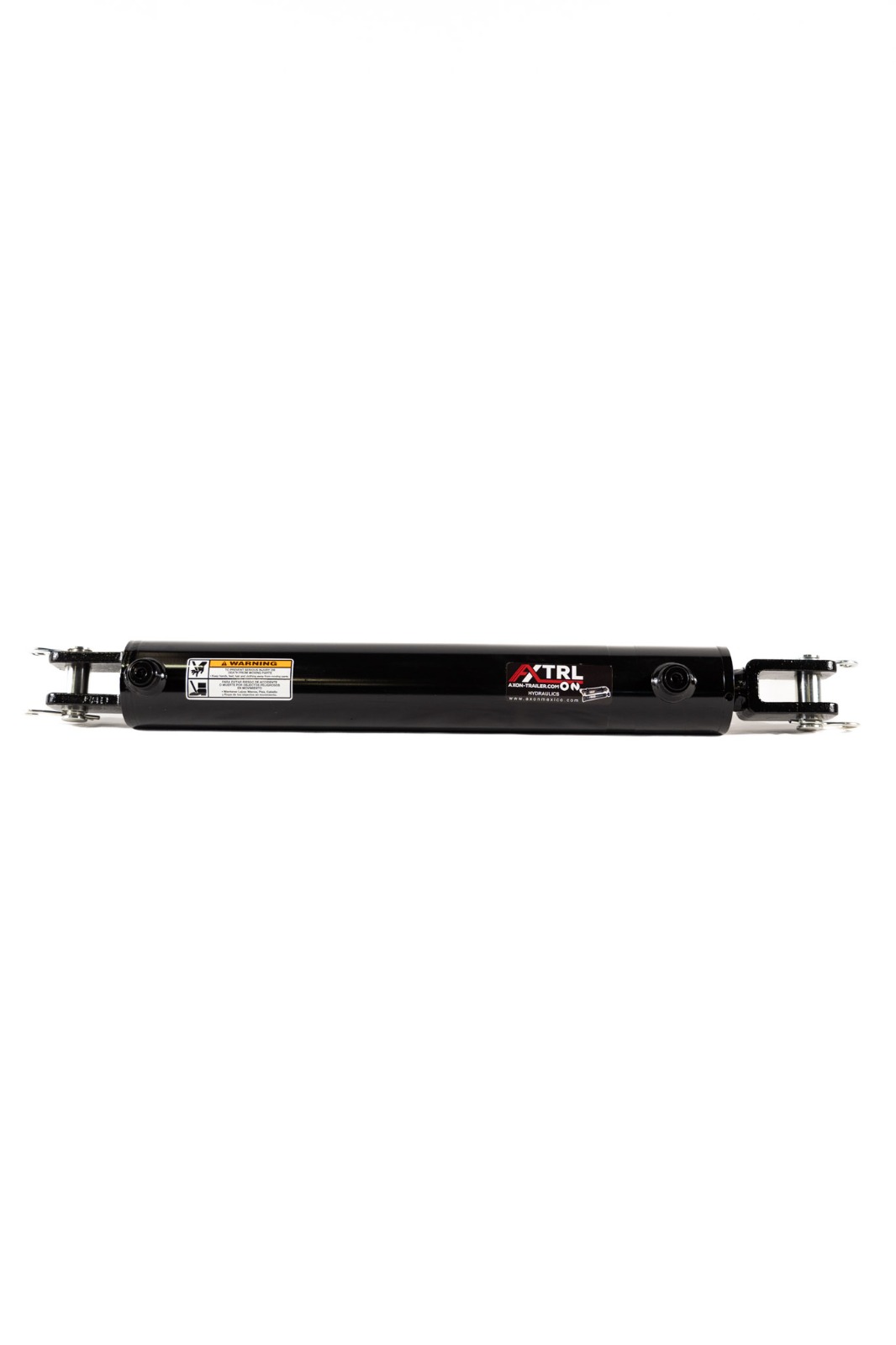

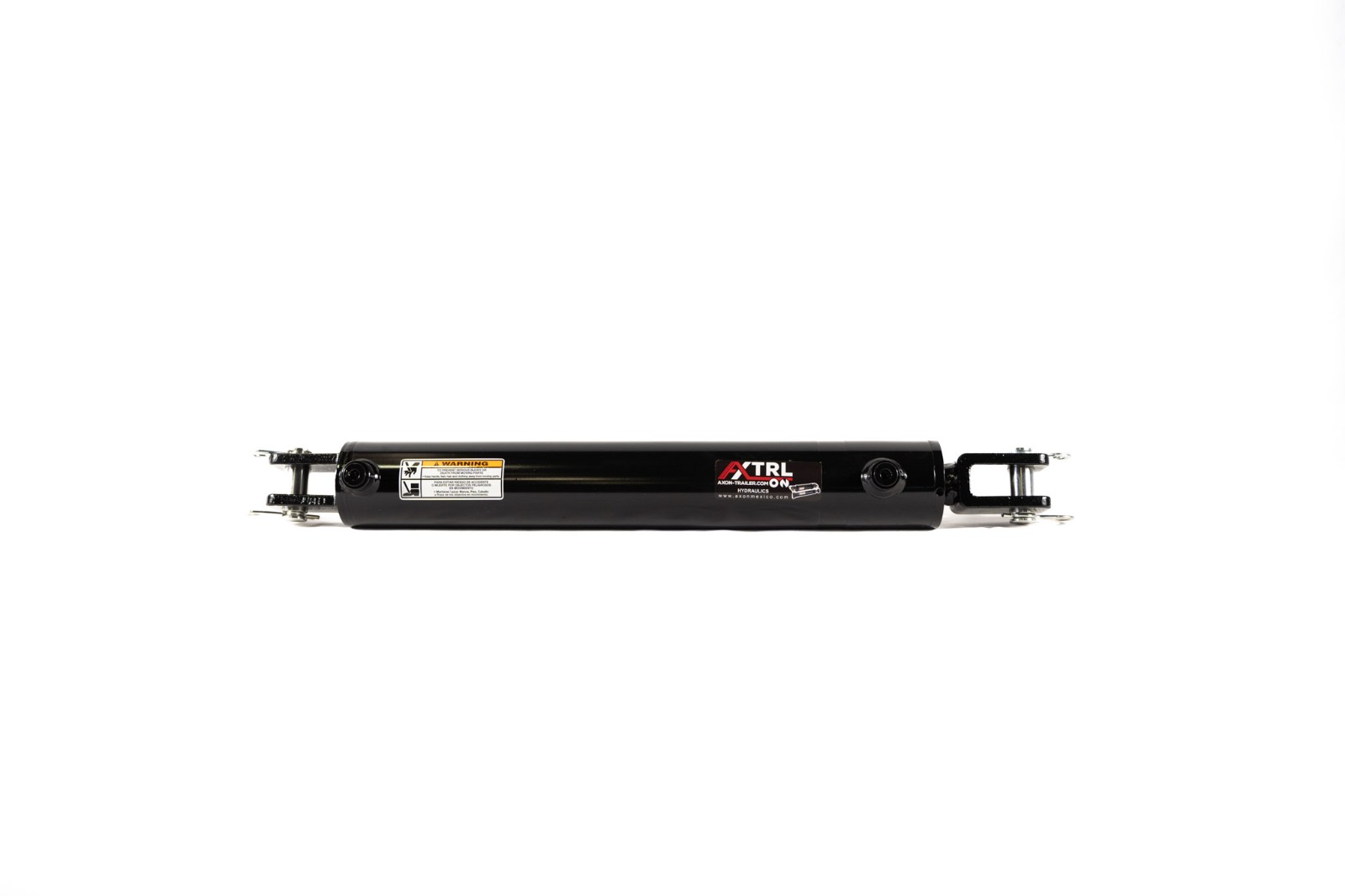

BORE 3″ ROD 1 1/2″ STROKE 18″ 3,000 PSI

BORE 3″ ROD 1 1/2″ STROKE 18″ 3,000 PSI
BORE 3″ ROD 1 1/2″ STROKE 18″ 3,000 PSI - Image 2
BORE 3″ ROD 1 1/2″ STROKE 18″ 3,000 PSI - Image 3
BORE 3″ ROD 1 1/2″ STROKE 18″ 3,000 PSI - Image 4
Robust Material: Polished black steel housing.
Superior Durability: High-strength chrome-plated steel rod.
Double-acting operation for increased efficiency.
Pressure Capacity: Up to 3,000 PSI.
Weight: 15.40 kg.



Specifications:

  • Bore Diameter: 3 in
  • Rod Diameter: 1 1/2 in
  • Stroke Length: 18 in
  • Pin Diameter: 1 in
  • Oil Port Diameter: SAE 8

Dimensions (pin to pin):

  • Closed Length: 28 1/4 in
  • Extended Length: 46 1/4 in
